3020

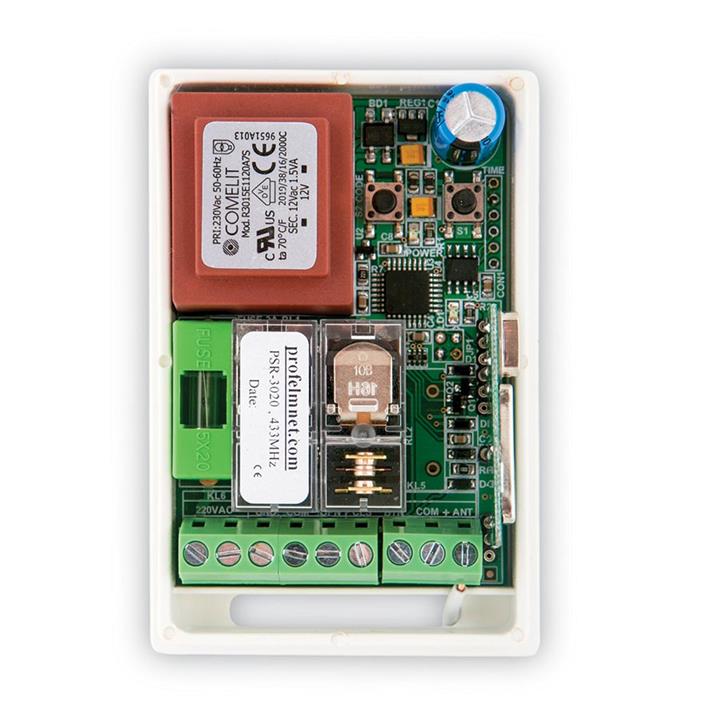

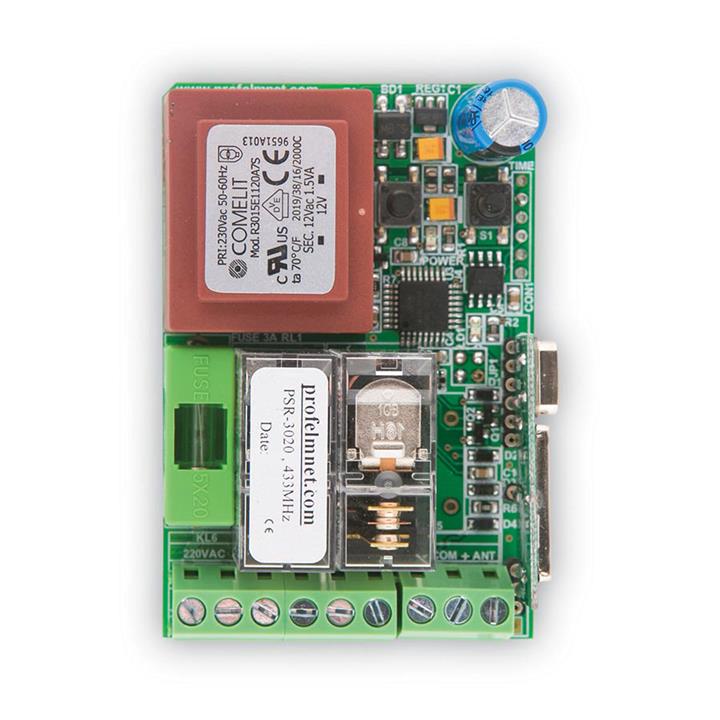

Control panel for rolling shutters up to 1000 watt, 433,92MHz

Product description
Technical leaflets

3020 is new control panel 110/230VAC for rolling shutter. Suitable for AC motor up to 1000 watt. Advanced design and innovative functions. 300 transmitters can be stored.

Main functions

External START/STOP button terminal
Adjustable working time from 1-180S
RF module removable 433,92MHz
Provides filters for the external noises

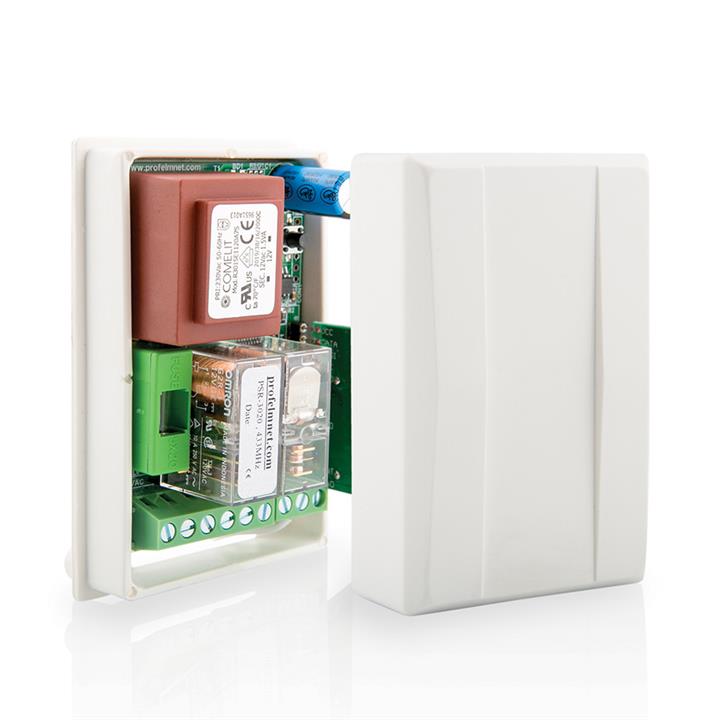

Compact size 80 X 45X 30 including the ABS housing.
Working temperature -10oC - 50 oC

Available codes

Product name	Codification	Compatible Transmitters
PS3020	fixed 433.92MHz	PS-46T
PN3020	pn rolling 433.92MHz	PN-46T

3020.pdf

3020 tech.pdf

CE 3020.pdf

Accessories

Enrich the product with the appropriate accessories, giving it more functionality and features.

LP-56T

Details
